General Data
Lens / Reflector Type
TIR Optic Lens
Mode Operation

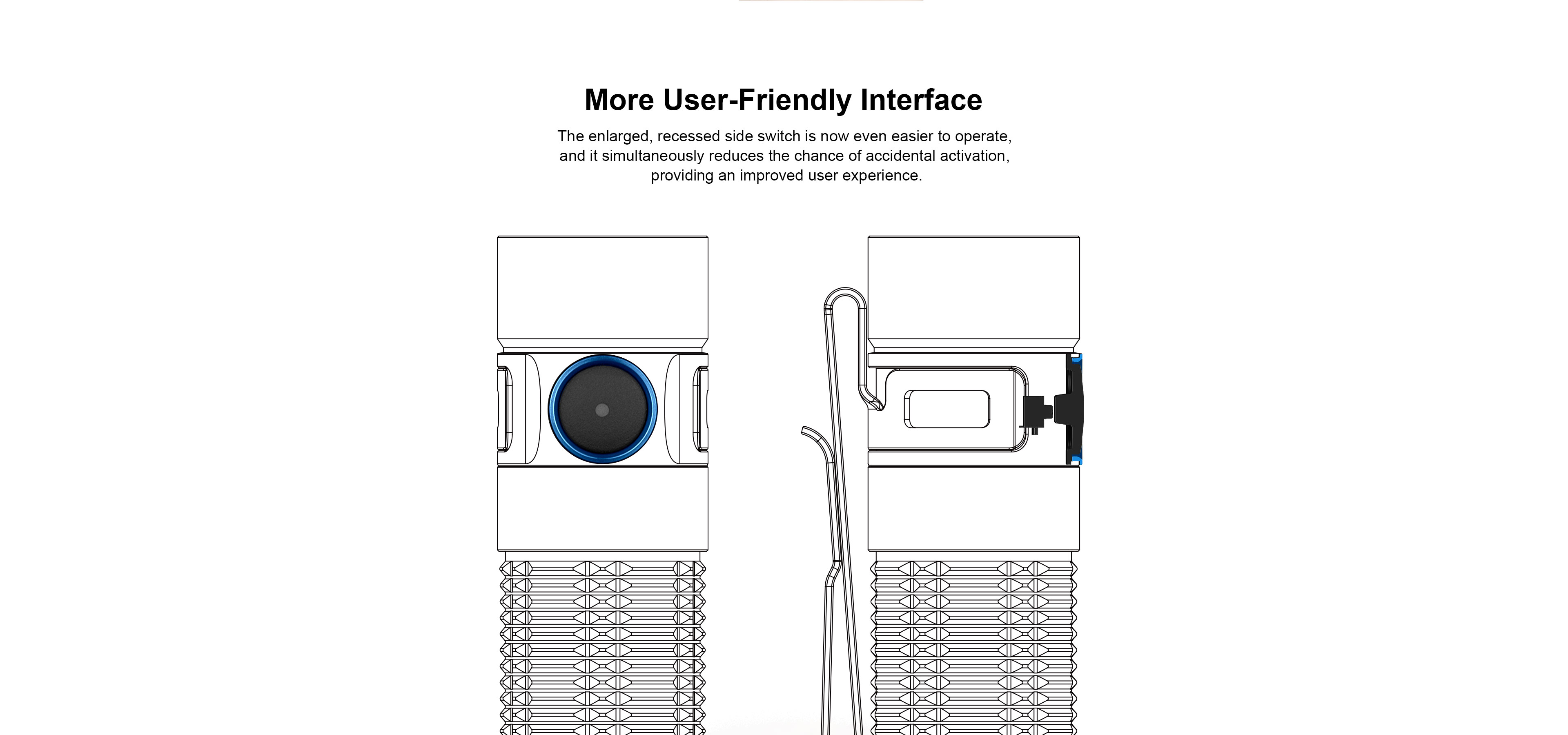

Side Switch
Series
Series Baton
Form/Size Factor
Medium size
Light Source
Black: High Performance Cool / Neutral; OD Green: High Performance Cool White LED
Max Light Intensity (Candela)
CW / NW: 5,295 candela
Compatible Batteries

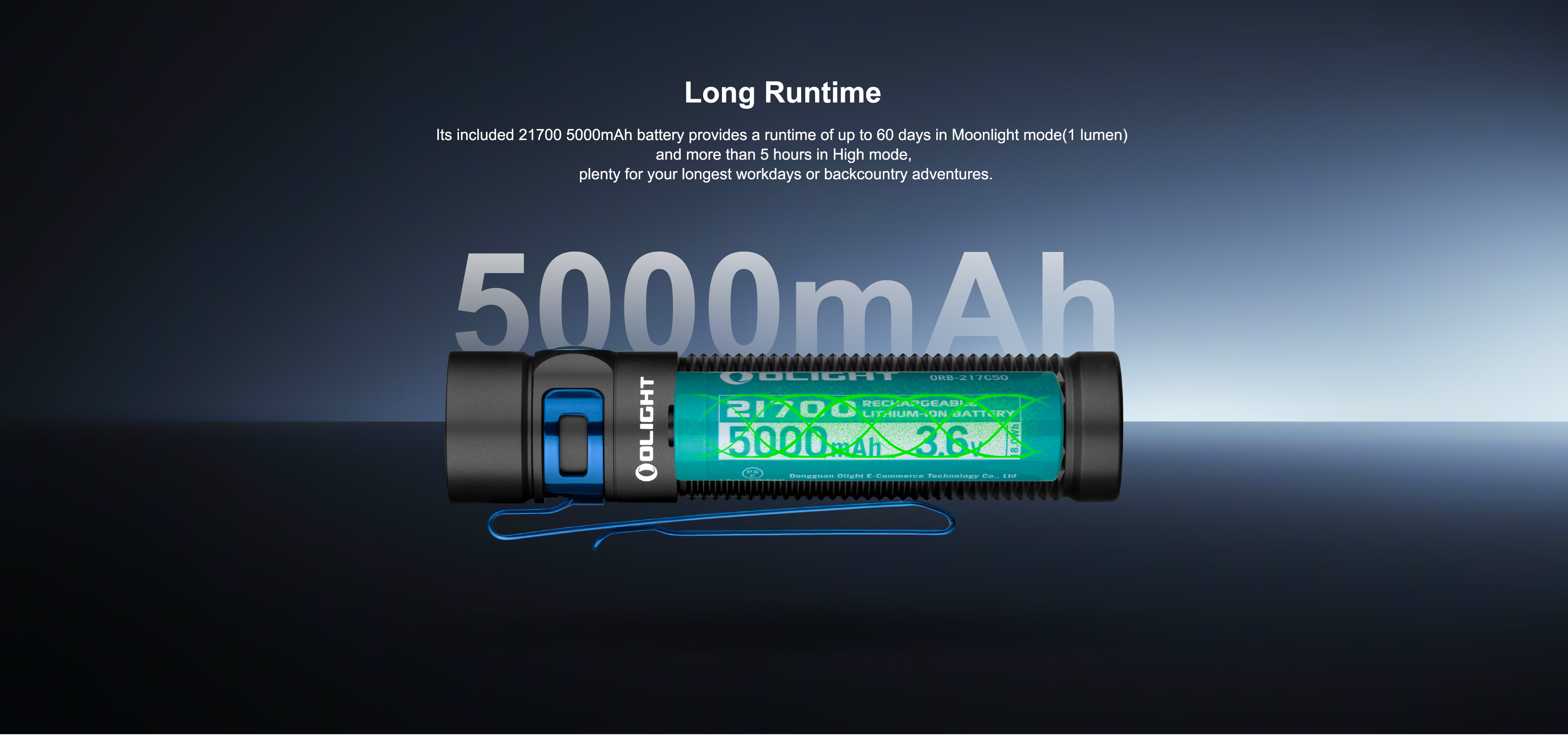

Customized 5000mAh 3.6V 21700 Rechargeable lithium-ion Battery
Charging Type
MCC3 Charging Cable
Max. Performance (lumens)
2,500 lumens
Beam Distance (m)
145 m
Beam Distance (ft)
475 ft
Lighting Levels
Light Mode 1 (lumens)
CW / NW: 2,500~800 lumens
Run-time LEVEL 1
1 + 240 minutes
Light Mode 2 (lumens)
CW / NW: 800~120 lumens
Run-time LEVEL 2
243 + 80 minutes
Light Mode 3 (lumens)
CW / NW: 120 lumens
Run-time LEVEL 3
23 hours
Light Mode 4 (lumens)
CW / NW: 15 lumens
Run-time LEVEL 4
180 hours
Light Mode 5 (lumens)
1 lumen
Run-time LEVEL 5
60 days
Strobe
Yes
SOS / BEACON
No
TECHNICAL CHARACTERISTICS
Waterproof

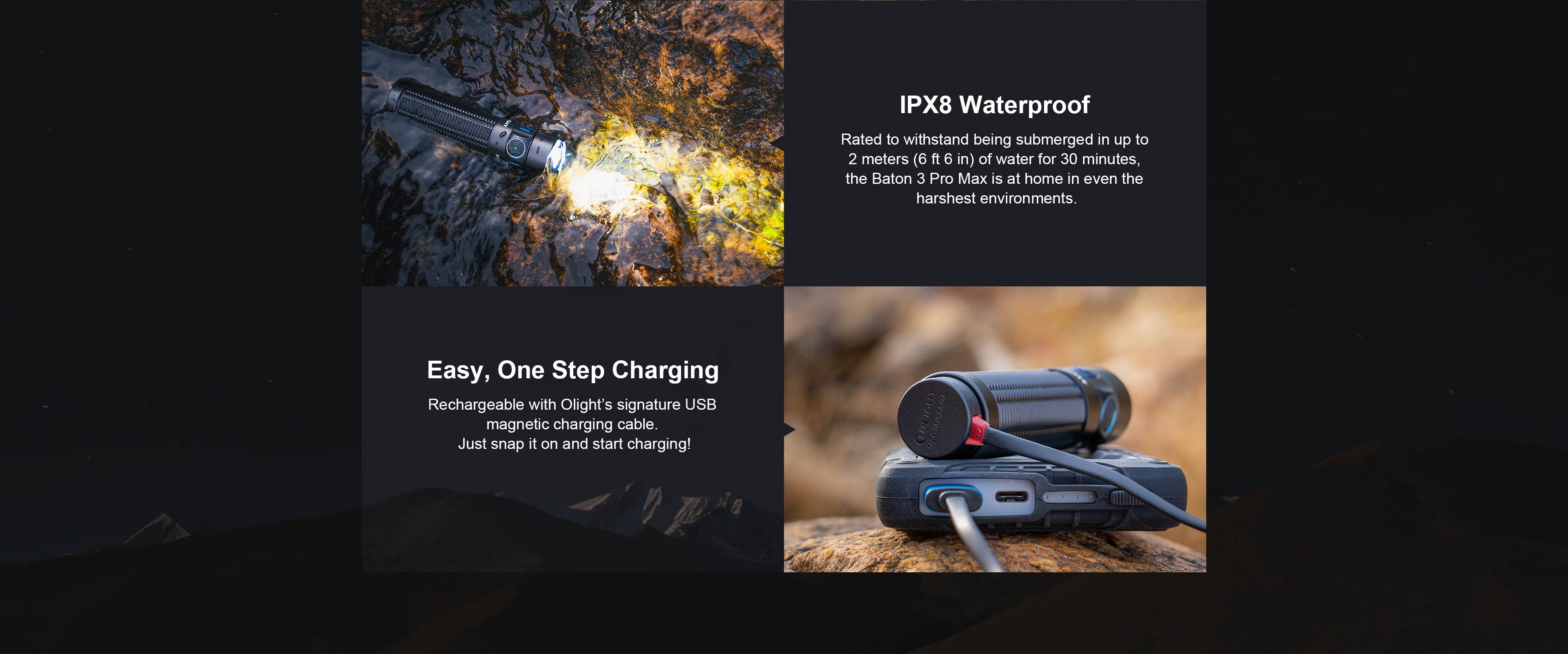

IPX8
Packaging
Carton Box
Weight
Black / OD Green: 5.22 oz (148 g) (Including Battery)
Overall Length
4.49 in (114 mm)
Use
Camping & Hiking & Mountaineering & Household
Package Contents
Baton 3 Pro Max (Battery Included) x1
MCC3 Charging Cable x 1
L-shape Stand ×1
Pouch ×1
User Manual ×1
